ARI - MT Broad band
Site information
ID: ARI
Name: Arischia (AQ)
Latitude (N):: 42°25’09.00’’
Longitude (E): 13°23’29.00’’
Altitude(m.a.m.s.l.): 1159

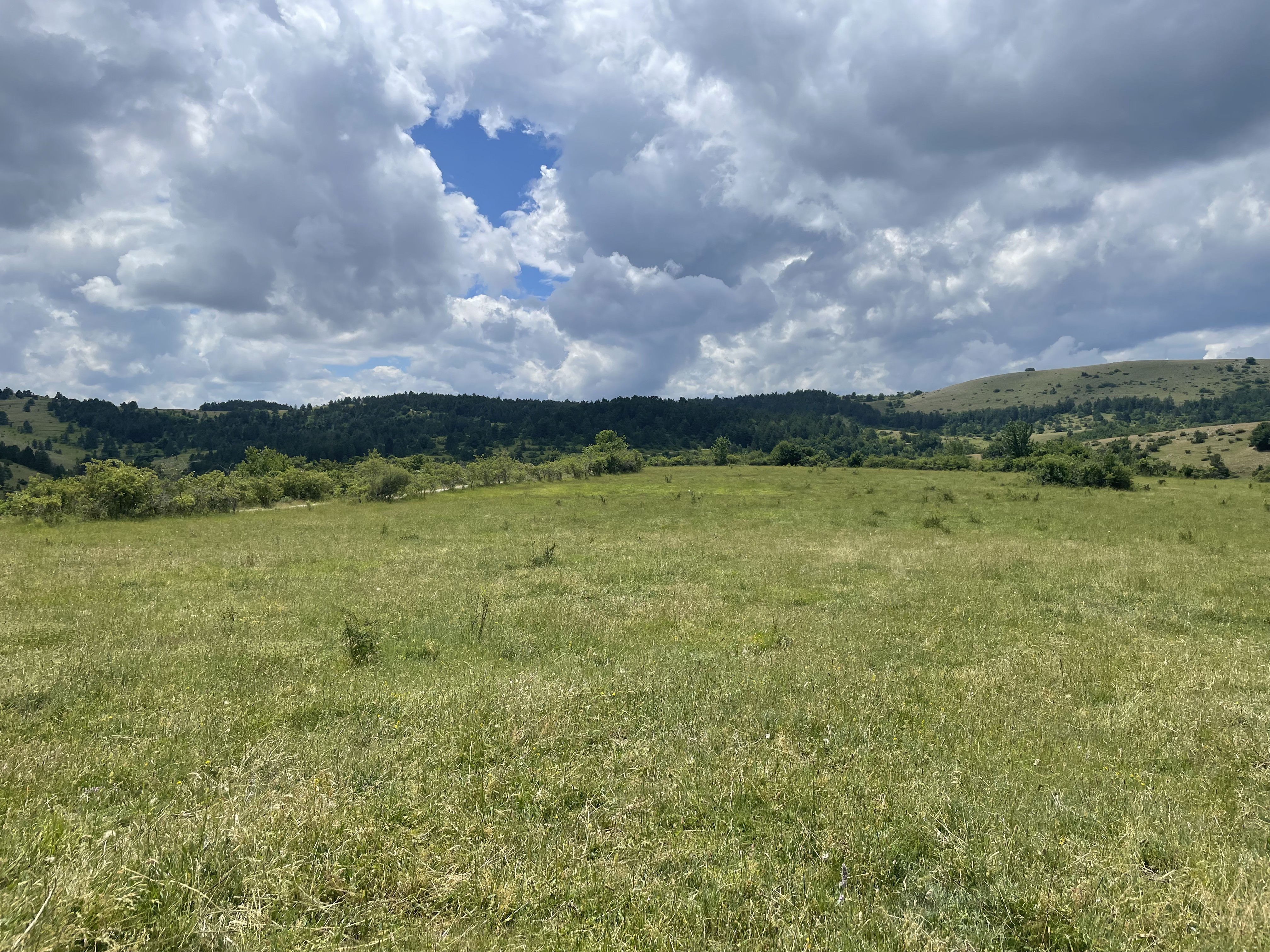

North-South view

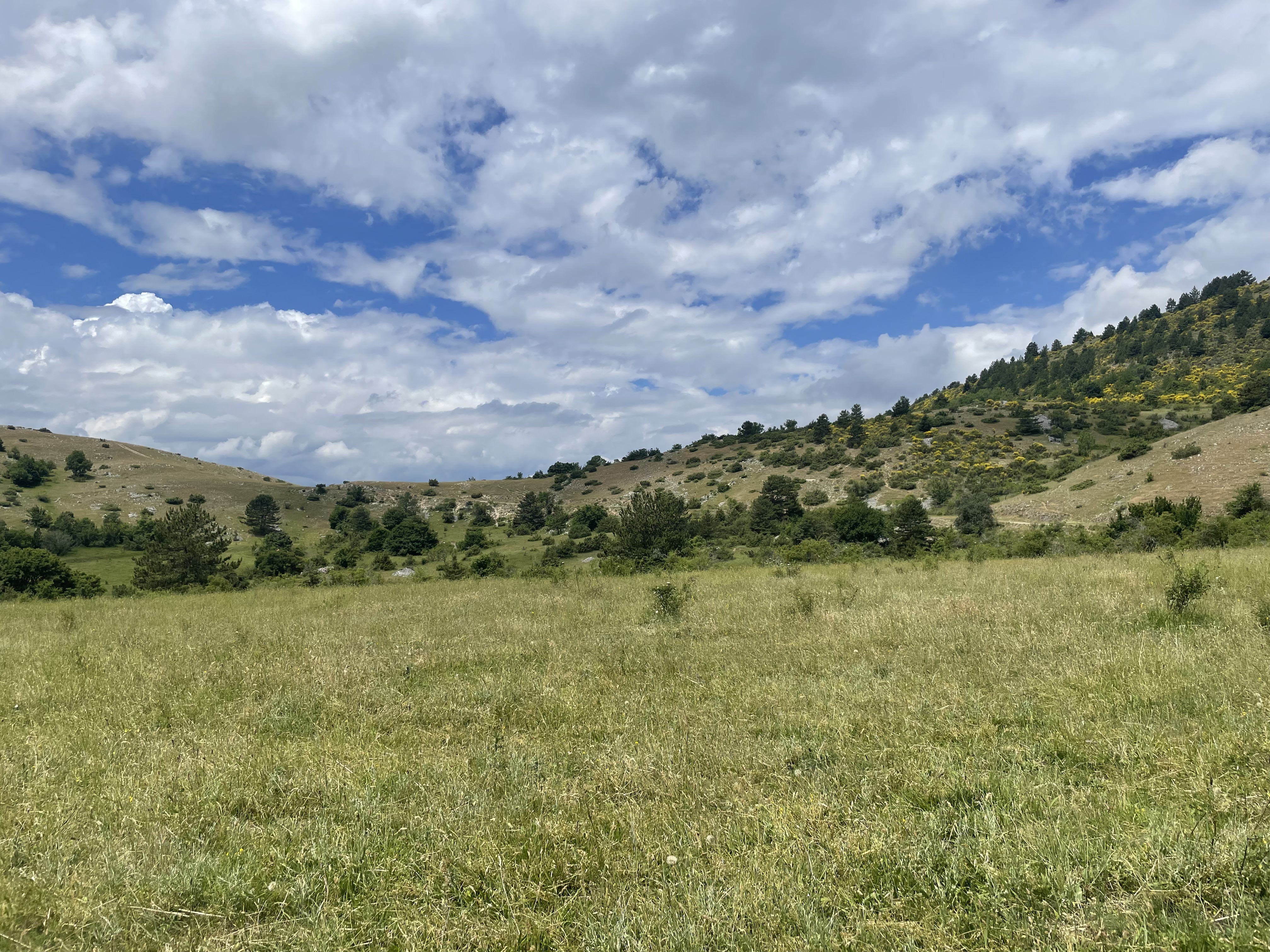

East – West view
Campaign information
Campaign type: MT Broad band
Start: 24/06/2024
End: 08/07/2024
Data Quality: TBD

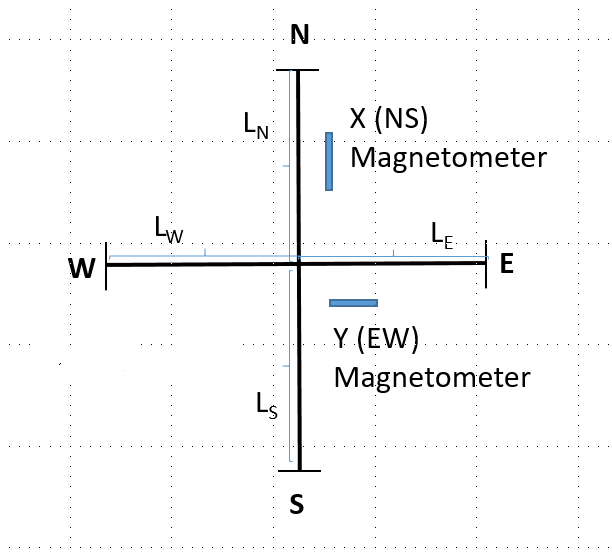

Orientation : Orthogonal
LNS (m)=LS (m)= 45
LE (m)=LW (m)= 45
Campaign results
Results of the Broad-Band MT Survey at ARISCHIA (ARI)

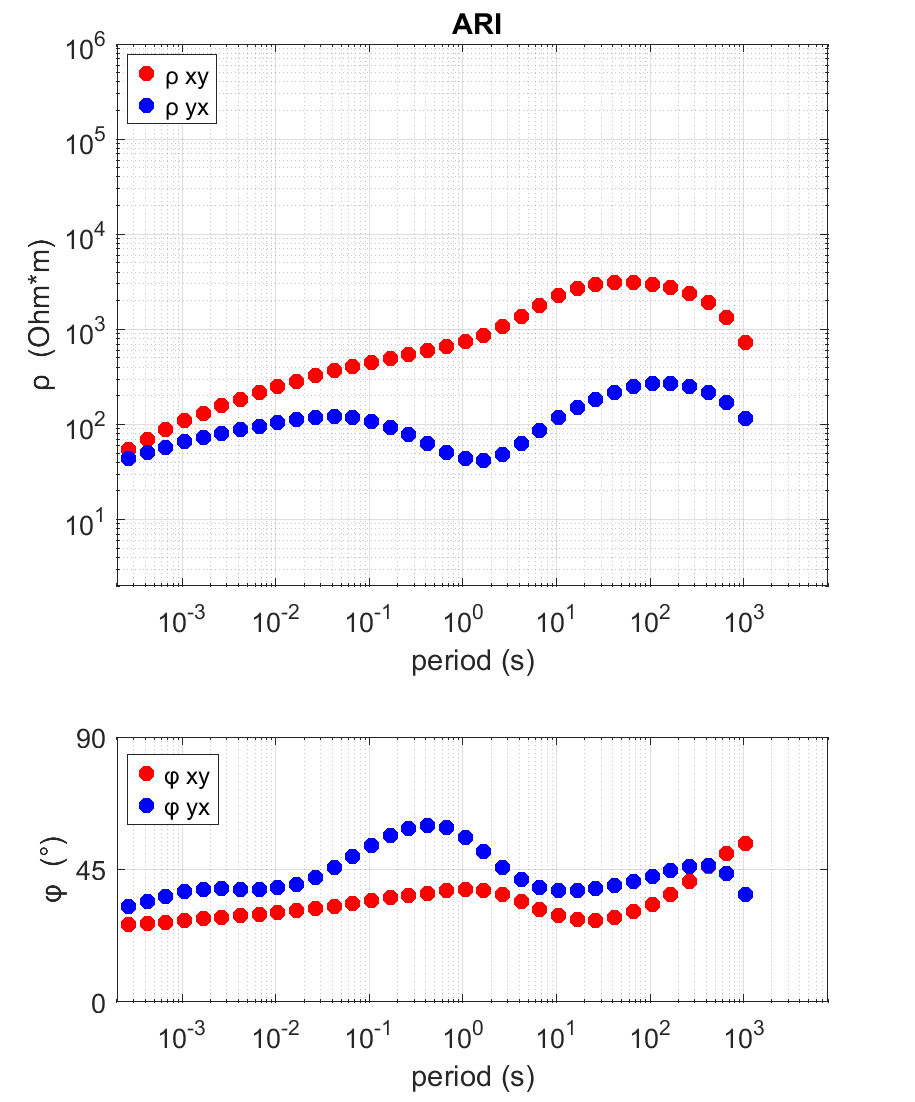

The graph displays the results of data processing from the measurement campaign at the station. In the upper panel, apparent resistivity is shown on a double logarithmic scale as a function of period (expressed in seconds), with the ρXY component in red and the ρYX component in blue. In the lower panel, the associated phase is plotted using the same scale. The curve trends provide insights into the subsurface electrical structure, highlighting conductivity variations related to the area's geology.
Data Policy
Not available yet
ARI - MT Long term
Site information
ID: ARI
Name: Arischia (AQ)
Latitude (N): 42°25’09.00’’
Longitude (E): 13°23’29.00’’
Altitude (m.a.m.s.l.): 1159
North-South view
East – West view
Campaign information
Campaign type: MT - Long term
Start: 03/03/2026
End: TBD
Data Quality: TBD
Orientation : Orthogonal
LN (m)= 40
LS (m)= 40
LE (m)= 40
LW(m)= 40
Campaign results
Not available yet
Data Policy
Not available yet
